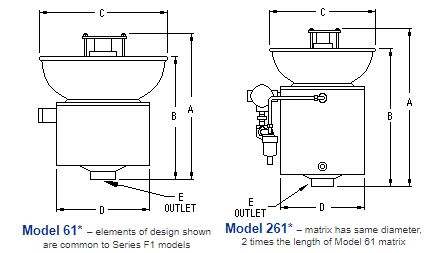

* To show connections, orientations differ from actual. Request outline drawings for accuracy.
| n | Height Overall (A) | Height to Rim of Bowl (B) | Diameter of Bowl (C) | Diameter of Body (D) | Outlet, NPT (E) | Current @ 115 V dc | Capacity, heavy slurries | Net Weight | Shipping Weight |
|---|---|---|---|---|---|---|---|---|---|
| Model No. | inches centimeters | Amps | U.S. gph lph | pounds kilograms |
|||||
| 41 | 15.63 39.7 | 12.75 32.4 | 12.75 32.4 | 8.63 21.9 | 1.25 3.2 | 1.2 | 130-400 492-1514 | 70 32 | 100 45 |
| 241 | 20.5 52.1 | 17 43.2 | 12.75 32.4 | 9 22.9 | 1.25 3.2 | 3.5 | 125 57 | 165 75 |
|
| 51 | 17.88 45.4 | 14.88 37.8 | 15.25 38.7 | 10.75 27.3 | 1.5 3.8 | 1.8 | 300-900 1136-3407 | 100 45 | 130 59 |
| 61 | 22 55.9 | 18.5 47.0 | 19 48.3 | 14 35.6 | 3 7.6 | 2.5 | 650-2000 2460-7570 | 225 102 | 285 129 |
| 261 | 28.25 71.8 | 24.5 62.2 | 19 48.3 | 15 38.1 | 3 7.6 | 8.0 | 445 202 | 525 238 |
|
| 461 | 43 109.2 | 38.5 97.8 | 13.88 35.3 | 15 38.1 | 3 7.6 | 16.0 | 815 370 | 920 417 |
|
| 71 | 24 61.0 | 21 53.3 | 21.25 54.0 | 19 48.3 | 3.5 8.9 | 7.0 | 1300-4000 4921-15,140 | 500 227 | 620 281 |
| 271 | 31 78.7 | 28 71.7 | 21.25 54.0 | 19 48.3 | 3.5 8.9 | 14.0 | 750 340 | 850 386 |
|
| Indicates water-cooled models Multiple-length matrix is indicated by three digit model number, e.g., Model 241 has double-length matrix; Model 461 has quadruple-length matrix. | |||||||||
