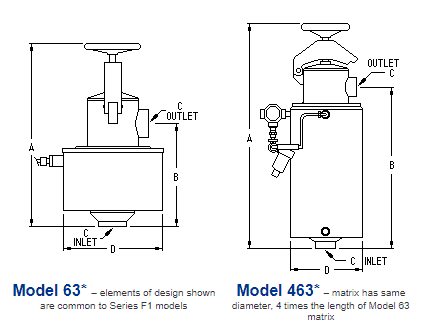

*To show connections, orientations differ from actual. Request outline drawings for accuracy.
| n | Height Overall (A) | Height to Outlet (B) | Inlet & Outlet (C)** | Diameter of Body (D) | Current @ 115 V dc | Capacity, heavy slurries | Net Weight | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| Model No. | inches centimeters | Amps | U.S. gph lph | pounds kilograms |
||||
| 43 | 17 43.2 | 9.68 24.6 | 1.5 3.8 | 8.63 21.9 | 1.2 | 130-400 492-1514 | 81 37 | 94 43 |
| 243 | 21 53.3 | 13.94 35.4 | 1.5 3.8 | 9 22.9 | 3.5 | 133 60 | 155 70 |
|
| 53 | 18.75 47.6 | 10.25 26.0 | 2 5.1 | 10.75 27.3 | 1.8 | 300-900 1136-3407 | 110 50 | 140 64 |
| 63 | 28.5 72.4 | 15.25 38.7 | 3 7.6 | 14 35.6 | 2.5 | 650-2000 2460-7570 | 288 131 | 330 150 |
| 263 | 35 88.9 | 21.5 54.6 | 3 7.6 | 15 38.1 | 8.0 | 485 220 | 690 313 |
|
| 463 | 47 119.4 | 34.25 87.0 | 3 7.6 | 15 38.1 | 16.0 | 850 386 | 1065 483 |
|
| 73 | 25.25 64.1 | 17 43.2 | 4 10.2 | 21 53.3 | 7.0 | 1300-4000 4921-15,140 | 720 327 | 920 417 |
| 273 | 32 81.3 | 24 61.0 | 4 10.2 | 21 53.3 | 14.0 | 800 363 | 850 386 |
|
| 83 | 31.75 80.6 | 22.38 56.8 | 4** 10.2** | 28 71.1 | 8.0 | 2600-8000 9841-30,280 | 1325 601 | 1430 649 |
| 283 | 39.88 101.3 | 30.38 77.2 | 4** 10.2** | 28 71.1 | 16.0 | 1900 862 | 2030 921 |
|
| 93C | 59 149.9 | 36 91.4 | 6** 15.2** | 41.5 105.4 | 20.5 | 5500-17,000 20,818-64,348 | 3600 1633 | 3790 1719 |
| ** Flanged Models Marked ** Indicates water-cooled models Multiple-length matrix is indicated by three digit model number, e.g., Model 243 has double-length matrix; Model 463 has quadruple-length matrix. | ||||||||
